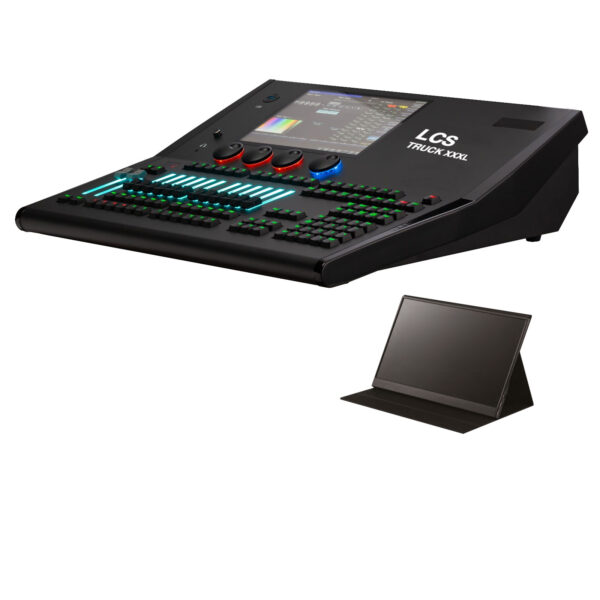

TRUCK XXXL
TRUCK XXXL scanner controller can control 2048-
channel scanners or other equipment.
Its convenient and flexible operation made it be
handled very easily. 10,2″ LCD touch screen for
operating.TRUCK XXXL is suitable for different
ballroom,conference room,meeting, stadium,theatre,
taproom and big show. A tablet touch screen can be
connected and programmed to this device as desired.
- Description
- Techinal Specifications
- Catalogue File
Description
TRUCK XXXL scanner controller can control 2048-
channel scanners or other equipment.
Its convenient and flexible operation made it be
handled very easily. 10,2″ LCD touch screen for
operating.TRUCK XXXL is suitable for different
ballroom,conference room,meeting, stadium,theatre,
taproom and big show. A tablet touch screen can be
connected and programmed to this device as desired.
Provides 2 optically isolated outputs. A maximum of 2048 channels can be offered through the Art-
Net function.
• Built-in 10,2’’ capacitive LCD touch screen.
• 12 playback faders and 12 playback keys run with 80 pages.
• 4 backlit optical encoders for data settings.
• The key backlit offers three color options and adjustable brightness.
• Playback faders with backlit that can set 3 different usage states to different colors.
• Individual keys for the flash and pause functions for playbacks.
• Provide midi In, Out, and Thru interfaces to connect and work with other devices. Accept midi
time code signal.
• Built-in WiFi for connecting applications on mobile or tablet devices.
• Provide one USB 3.0 and two USB 2.0 interfaces.
• Provide one HDMI interface.
• Offer a RCA audio interface, one audio optical interface, and a headphone interface.
• A working lamp interface.
• Power supply: AC100-240V, 50-60Hz.
• Size: 570mm × 445mm × 152mm.
• Net weight: 10Kg approx.
