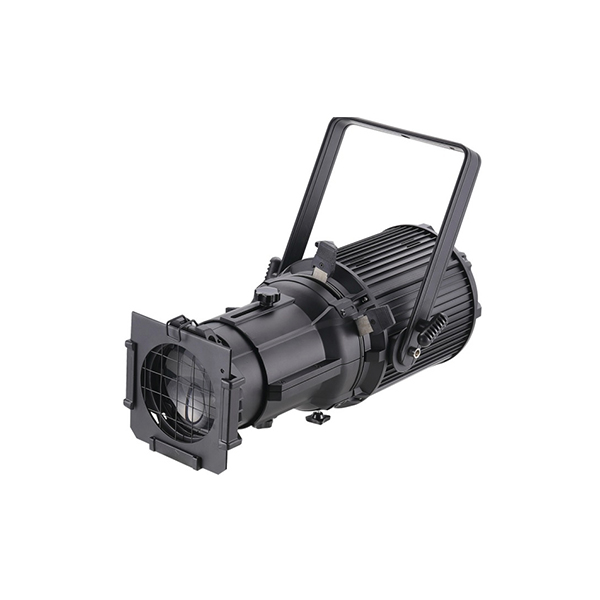

THEATRE 300 RGBW
THEATRE 300 RGBW, 300W RGBW COB LED Prof˜le Spot. Color temperature: 2000K–8000K. Beam angle: 14°–40°, opt˜onal lenses: 12°/19°/26°/30°/36°/50°. 5–10 DMX channels, 7 d˜mm˜ng curves, 0–100% l˜near d˜mm˜ng. PowerCON
nput, 3P-XLR DMX512. IP20, d˜e-cast alum˜num hous˜ng. S˜ze: 750×350×350mm. We˜ght: 7kg.
- Techinal Specifications
- Catalogue File
| Feature | Specification |
|---|---|
| Signal input / output: | 3P-XLR input / output, DMX512 signal |
| Power consumption: | 300W maximum |
| Color: | 2000 K-8000 K |
| Luminos angle: | 12 ° / 19 ° / 26 ° / 30 ° / 36 ° / 50 ° (optional) |
| LED light source: | white light 300 W COB LED-RGBW |
| Control: | RGBW 7 dimming curves can be selected; master-slave synchronization; separate self-propelled program,0%-100% linear dimming,Dmx mode, Color change,color fade,static color,auto mod. |
| DMX channel: | 5-10 channel -95 Color rendering Index ,DMX |
| Beam angle: | 14-40° |
| Waterproof rating: | IP20 |
| Housing material: | die-cast aluminum |
| Power input: | PowerCON power |
| Working environment temperature: | -25°-55° |
| Voltage adp: | Ac/Dc15V |
| Size: | 750*350*350mm |
| N.W: | 7 kgs |
