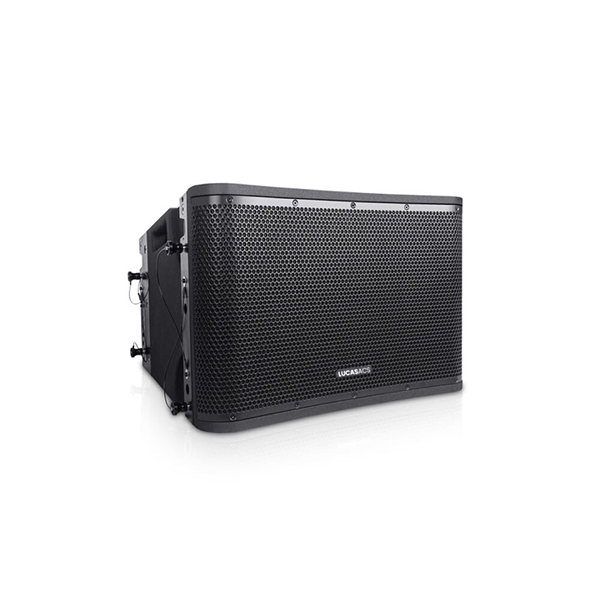

QLA115DSP
The LUCASACS QLA115DSP is a lightweight and compact line array speaker system. It features one 15” woofer and two 3” titanium compression driver, delivering stellar sound quality. The built-in class-D power amplifier provides a powerful output of 800 W Rms, 1600W continuous, 3200W peak power at 8Ω. The onboard DSP ensures excellent system optimization. Its rugged construction, along with a heavy-duty perforated metal grille, makes it suitable for touring applications. For easy flying mounting, the LUCASACS QLA115DSP speaker can be paired with LUCASACS QLA115FF frame (sold separately).
When combined with the powered LUCASACS QLASUB118DSP subwoofer, using the QLA115SS stacking adapter and QLA115FF flying frame (adapter and frame sold separately), this QLA system delivers tight bass at earth-shaking volumes, ideal for small to medium sized venues including: clubs, bars, restaurants, churches, schools, and etc.
- Techinal Specifications
- Catalogue File
| Feature | Specification |
|---|---|
| Frequency Response: | 40Hz – 20000Hz (± 3dB) – 45Hz – 20000Hz (-10dB) |
| Power Rating: | 800W-1600 W -3200 W @ 8 ohm |
| Driver: | 15’’ Woofers + 2 x 3’’ titanium compression drivers |
| Maximum SPL: | 139 dB SPL peak |
| Amplifier: | Class D with full DSP |
| Connection: | 2 x 1 /4 & XLR Combo -1/8’’ Aux-2 x XLR Line out |
| Signal Processing: | DSP controller HF-High Curvingü4 selectable DSP mode |
| Control: | Volume-onboard DSP |
| Finish: | High grade 100% birch plywood |
| Dispersion Angle: | 90 H X 40 V degree-100 H X 60 V degree(Opsional) |
| Dimensions: | 620 W-480 D-390 H mm |
| Weight: | 31 kg |
| Voltage: | 100-240 V-50/60 Hz |
| Mountaing: | Metal stand mount on botton |
