LX108
* 8″ LF with 2″ voice coil, 1.4″ titanium compression driver.
* High grade plywood with quality texture coating avaliable in black and white.
* U bracket included for installation.
* Used in meeting room, multi-function hail, bar, museum, church, KTV ete.
SKU: lx108
- Technical Specifications
- Catalogue File
| Feature | Specification |
|---|---|
| Frequency Response: | 65 Hz – 20kHz |
| Sensitivity: | 96 db |
| Spl Max: | 128 db |
| Dispersion: | 1 00° x 55° (H x V) Horn rotatable |
| Loudspeaker Data: | |
| Configuration: | 8″ multi-angle full range loudspeaker |
| Transducer: | LF: 1 x 8″, HF: 1 x 1.4″ diaphragm |
| lmpedance: | 80 Nominal |
| Power Handling | 350 / 700W |

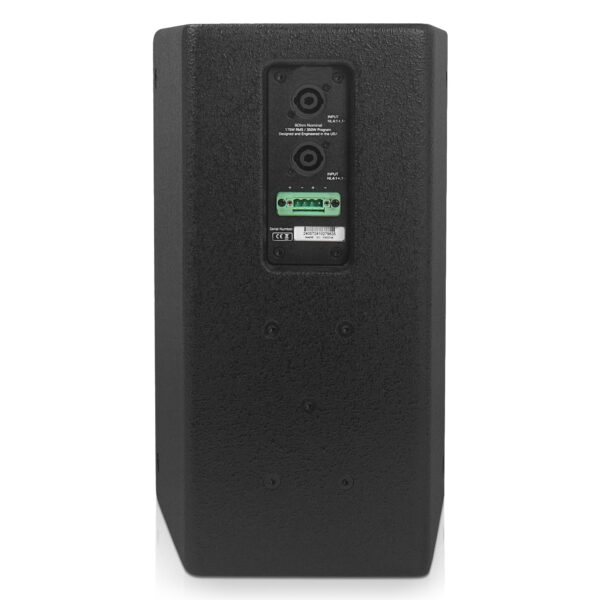

| Connectors: | 2 x 4 Pin Speakon®, Barrier Strip |
| Physical | |
| Cabinet Construction: | High grade 100% birch plywood |
| Mounting: | M8 inserts / U bracket |
| Finish: | Texture coating (RAL colors available) |
| Grill And Rigging Component: | Steel with anti-corrosion coat |
| Dimensions (mm/ lnch): | 250 W – 230 D – 445 H / 9.8 W – 9.1 D – 17 .5 H |
| Weight: | 9 kg/ 19.8 lb |
