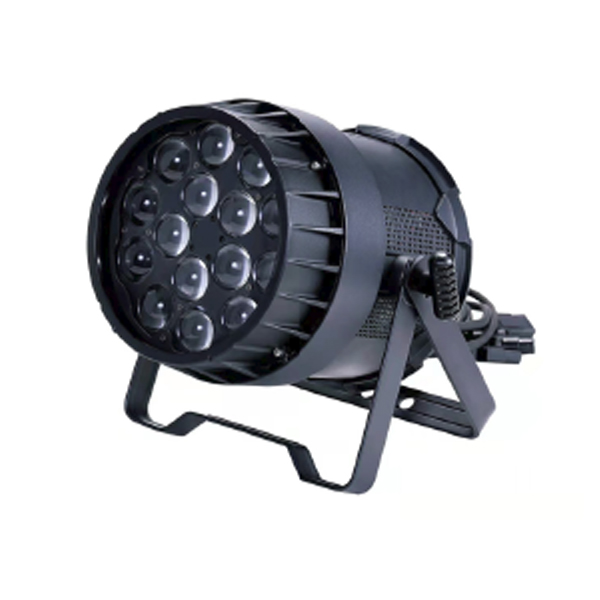

LP 1515 RGBW
LP 1515 RGBW, 200W RGBW COB LED Zoom Spot. Color temperature: 2700K–7200K. Beam angle: 6°–40°. 11 DMX channels, RGBW control, 7 d˜mm˜ng curves, l˜near d˜mm˜ng 0–100%. PowerCON ˜nput, 3P-XLR DMX512. IP20, d˜e-cast alum˜num hous˜ng. S˜ze: 350×300×300mm. We˜ght: 6kg.
- Techinal Specifications
- Catalogue File
| Feature | Specification |
|---|---|
| Signal input / output: | 3P-XLR input / output, DMX512 signal |
| Power consumption: | 200W maximum |
| Color: | 2700 K-7200 K |
| LED light source: | white light 15 X 15 W COB LED-RGBW |
| DMX channel: | 11 Single channel – 85 Color rendering Index ,DMX |
| Control: | RGBW 7 dimming curves can be selected; master-slave synchronization; separate self-propelled program,0%-100% linear dimming,Dmx mode,Color change,color fade,static color,auto mod. |
| Beam angle: | 6-40° |
| Waterproof rating: | IP20 |
| Housing material: | die-cast aluminum |
| Power input: | PowerCON power |
| Voltage adp: | Ac/Dc15V |
| Working environment temperature: | -20°-50° |
| Size: | 350*300*300mm |
| N.W: | 6 kgs |
