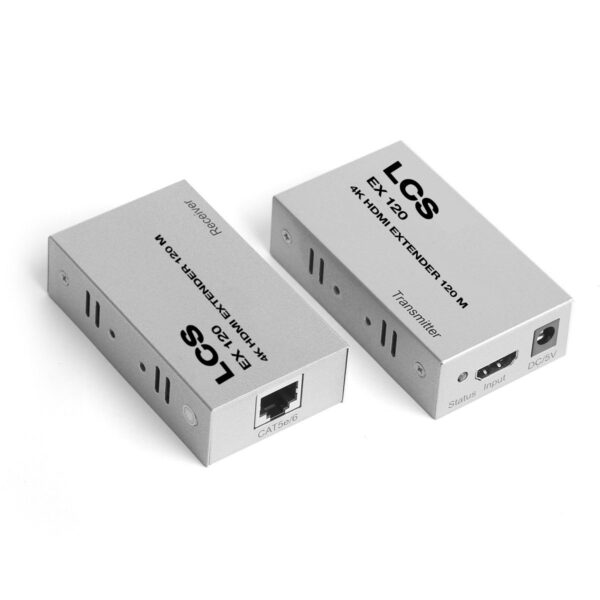

EX 120 SET
- Description
- Techinal Specifications
- Catalogue File
Description
Connect the HDMI receiver to the HDTV display with
HDMI cable. Use one Cat5e/6 cable up to 120m to
connect the Sender and Receiver.
Connect the “IR receiver “into “IR-TX” port on
transmitter, and “IR transmitter ” into the “IR-RX” on
receiver, and make sure the IR transmitter aim at IR
receiver of the controlled device if you need the IR
control function.
Connect two pieces of 5V power supply to the
transmitter and receiver, power supply for the
equipment and the LED indicator light on. When status
lamp on and flicker, equipment starts normal.
| Feature | Specification |
|---|---|
| HDMI input: | 4K/1080p/720p/576p/576i/480p/480i |
| Support audio format: | DTS/Dolby/LPCM |
| HDMI output: | 4K/1080p/720p/576p/576i/480p/480i |
| Max bandwidth: | 340MHz |
| Max baud rate: | 3.4×3 Gbps |
| Input video signal: | 0.5 -1.5 volts p-p (TTL) |
| Output DDC signal: | 5 volts p-p (TTL) |
| Input HDMI cable distance: | ≤15m AWG26 HDMI standard cable |
| Output HDMI cable distance: | ≤15m AWG26 HDMI standard cable |
| TX Max working current: | 350mA |
| RX Max working current | 200mA |
| Power adapter format | Input AC (50HZ, 60HZ) 100V-240V: Output DC5V/1A |
| Operating Humidity range | 5% to 90% RH (No condensation) |
| Dimension (LxWxH) | 94x84x24mm |
| TX Weight | 223g |
| RX Weight | 223g |
