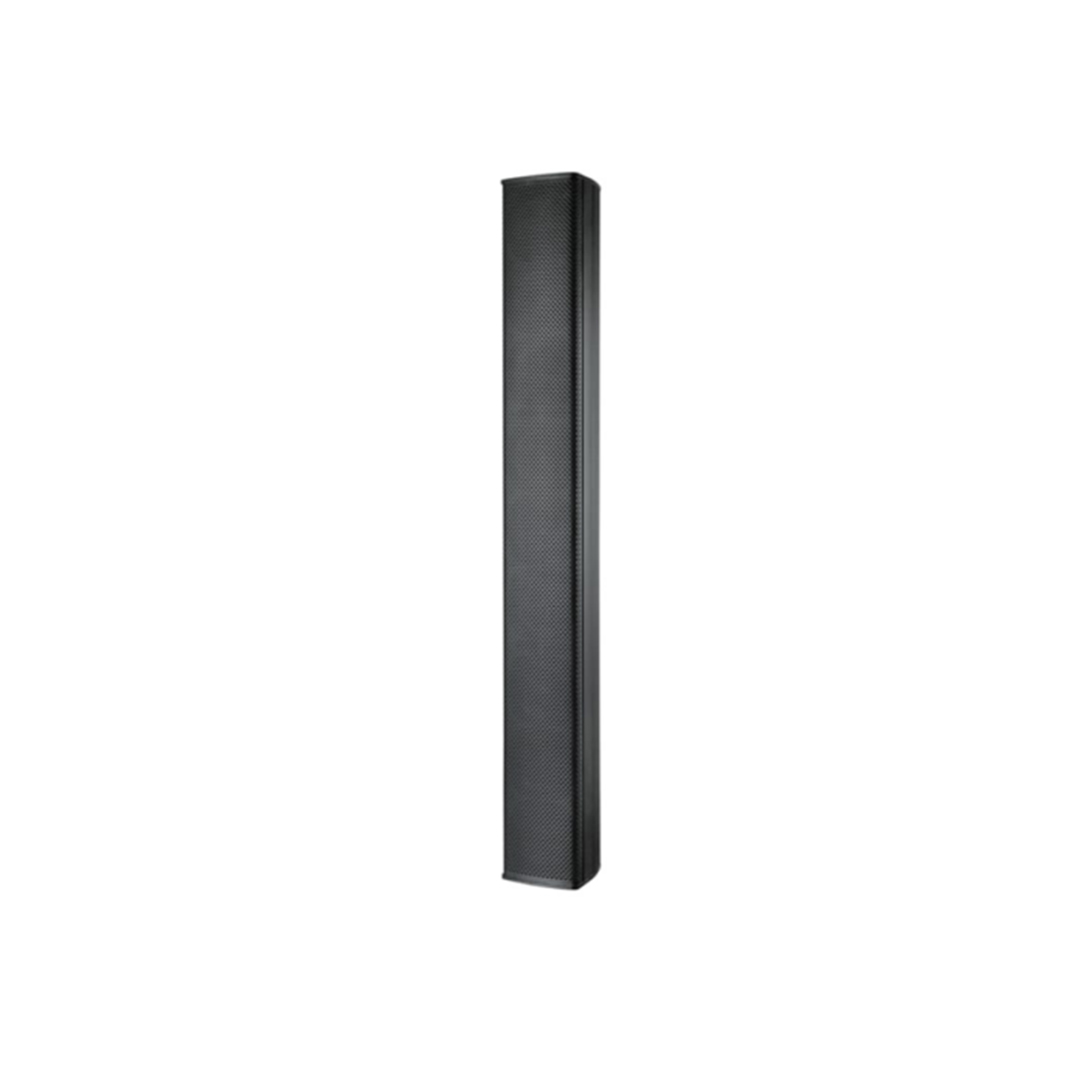

CS63
The Lucasacs CS63 is a compact column array loudspeaker system. It integrates 6 x 3“ woofers, 4 x 1.2” soft dome tweeters, and a low-inductance passive crossover and delivers balanced and crisp audio throughout any small to medium-sized venues. The built-in crossover uses complex, asymmetrical slopes to integrate the sub-systems and goes beyond merely dividing the signal to perform critical equalization functions.
With direct radiating drivers built in, the column speaker has a 25° x 140° coverage. Even better, it comes with a standard wall mount bracket and there is also a 10° adjustable bracket CLS, sold separately) that allows you to tilt the angle of the loudspeaker for optimal focusing on the listening area. The column speaker comes with both Speakon and EUROBLOCK connectors; it is ideal as an installation speaker or portable PA speaker and is perfect for live stage performance, church, conference center, night club, restaurant, lounge and more.
- Technical Specifications
- Catalogue File
Feature | Specification |
---|---|
Frequency Response | 100Hz – 20000Hz (± 3dB) 80Hz – 20000Hz (-10dB) |
Power Rating | 200 W-400 W-800 W PP @ 8 OHM |
Driver | 6×3‘’ + 4 x1,2‘’ dome tweeter |
Maximum SPL | 125 dB SPL peak |
Weight | 6,8 kg |
Connection | Speakon-Euroblock connectors |
Enclosure | Extrusion Aluminum |
IP rate | IP 55 -22C-+55C |
Finish | Black & White water-based paint |
Dispersion Angle | H 140 x V 25 degree |
Dimensions | 111 x 98 x 770 mm |
